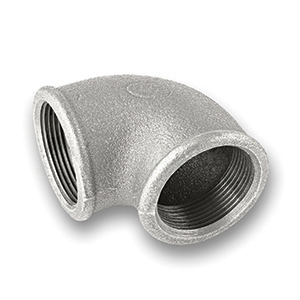

TSP® 90° Galvanised FxF Elbow Malleable Pipe Fitting

Size

Please select from the options above.

Quantity: - +

TSP® EN10242 Galvanised 90° FxF Elbow

A FM Approved TSP® malleable iron 90° female BSPP threaded elbow pipe fitting in galvanised finish to BS EN 10242.

Size Range

1/4" (8mm) to 4" (100mm)

Reinforcement

Beaded

Standard

ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive

Connection Type

Male BSPT taper threads/female BSPP parallel threads - EN10266-1/ISO 7-1, ISO 228-1

Material

GJMB-350-10 Blackheart Malleable Cast Iron to EN1562

Finish

HDG galvanised cast iron (minimum 70μm per 500gr/m²)

Maximum Operating Pressure

25 bar (PN25) up to 120ºC

Maximum Operating Temperature

300ºC at 20 bar (PN20)

Operating Temperature Range

-20ºC to 300ºC

Accreditation

FM Approved

TSP® malleable iron pipe fittings are primarily designed to be used with EN10255 steel tube and pipe.
