PN40 Non-Asbestos Fibre IBC Flange Gasket

PN40 Non-Asbestos Fibre IBC Flange Gasket

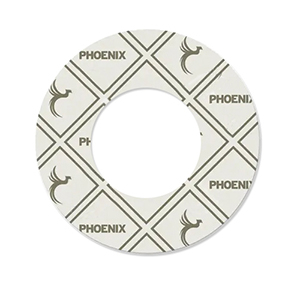

A PN40 Inner Bolt Circle (IBC) WRAS Approved non-asbestos PG-X compressed fibre flange gasket to BS7531 Grade X.

Description

PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.

Application

PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.

Typical Physical Properties

Thickness: 1.5mm
Density: 1.8g/cc
Tensile Strength: ASTM F152 14Mpa
Compression: ASTM F36J 7% to 15%
Recovery: ASTM 36J 65%
Residual Stress: BS7531 (40N/mm² @ 300°C) 26MPa
Gas leakage: BS7531 0.5ml/min
ASTM Oil 1: ASTM F146 2.5%
ASTM Oil 3: ASTM F146 5.0%
ASTM Fuel B: ASTM F146 4.0%
Code Description Price Quantity
016PN40015 1/2" NB PN40 IBC Flange Gasket
£1.07 (exc VAT) each
£1.28 (inc VAT)
-
+
016PN40020 3/4" NB PN40 IBC Flange Gasket
£1.21 (exc VAT) each
£1.45 (inc VAT)
-
+
016PN40025 1" NB PN40 IBC Flange Gasket
£1.37 (exc VAT) each
£1.64 (inc VAT)
-
+
016PN40032 1 1/4" NB PN40 IBC Flange Gasket
£1.72 (exc VAT) each
£2.06 (inc VAT)
-
+
016PN40040 1 1/2" NB PN40 IBC Flange Gasket
£1.93 (exc VAT) each
£2.32 (inc VAT)
-
+
016PN40050 2" NB PN40 IBC Flange Gasket
£2.58 (exc VAT) each
£3.10 (inc VAT)
-
+
016PN40065 2 1/2" NB PN40 IBC Flange Gasket
£2.98 (exc VAT) each
£3.58 (inc VAT)
-
+
016PN40080 3" NB PN40 IBC Flange Gasket
£3.30 (exc VAT) each
£3.96 (inc VAT)
-
+
016PN40100 4" NB PN40 IBC Flange Gasket
£5.60 (exc VAT) each
£6.72 (inc VAT)
-
+
016PN40125 5" NB PN40 IBC Flange Gasket
£7.25 (exc VAT) each
£8.70 (inc VAT)
-
+
016PN40150 6" NB PN40 IBC Flange Gasket
£10.03 (exc VAT) each
£12.04 (inc VAT)
-
+
016PN40200 8" NB PN40 IBC Flange Gasket
£14.28 (exc VAT) each
£17.14 (inc VAT)
-
+
016PN40250 10" NB PN40 IBC Flange Gasket
£17.94 (exc VAT) each
£21.53 (inc VAT)
-
+
