1/2Inch Galvanised 90º Elbow

1/2" Galvanised 90º Elbow

Stock Code: 038090GE015
In Stock
£1.05 (exc VAT) each
£1.26 (inc VAT)
Quantity: - +

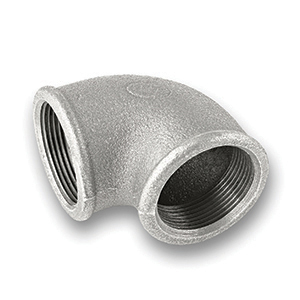

A FM Approved TSP® malleable iron 90° female BSPP threaded elbow pipe fitting in galvanised finish to BS EN 10242.

Size

Reinforcement

1/2" (15mm)

Beaded

Standard

Connection Type

ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED)

Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1

Material

Finish

GJMB-350-10 Blackheart Malleable Cast Iron to EN1562

Galvanised - hot dip zinc coated cast iron (minimum 70µm per 500gr/m

2

Maximum Operating Pressure

Maximum Operating Temperature

25 bar (PN25) up to 120°C

300°C at 20 bar (PN20)

Operating Temperature Range

Accreditation

-20°C to 300°C

FM Approved

View/download our TSP® EN10242 Malleable Iron Pipe Fitting Catalogue
