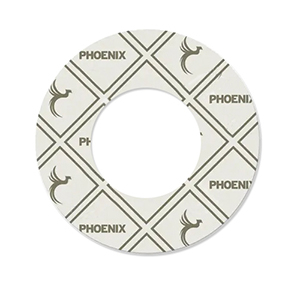

PN16 Non-Asbestos Fibre IBC Flange Gasket

PN16 Non-Asbestos Fibre IBC Flange Gasket

A PN16 Inner Bolt Circle (IBC) WRAS Approved non-asbestos PG-X compressed fibre flange gasket to BS7531 Grade X.

Description

PG-X is a high performance grade of compressed fibre sheet material based on aramid and inorganic fibres with a nitrile binding system.

Application

PG-X is a superior performance material meeting the requirements of BS7531 Grade X and with outstanding mechanical properties. It is suitable for many fluids including hydrocarbons, gases, dilute acids and alkalis.

Typical Physical Properties

Thickness: 1.5mm
Density: 1.8g/cc
Tensile Strength: ASTM F152 14Mpa
Compression: ASTM F36J 7% to 15%
Recovery: ASTM 36J 65%
Residual Stress: BS7531 (40N/mm² @ 300°C) 26MPa
Gas leakage: BS7531 0.5ml/min
ASTM Oil 1: ASTM F146 2.5%
ASTM Oil 3: ASTM F146 5.0%
ASTM Fuel B: ASTM F146 4.0%
Code Description Price Quantity
016PN16015 1/2" NB PN16 IBC Flange Gasket
£0.34 (exc VAT) each
£0.41 (inc VAT)
-
+
016PN16020 3/4" NB PN16 IBC Flange Gasket
£0.50 (exc VAT) each
£0.60 (inc VAT)
-
+
016PN16025 1" NB PN16 IBC Flange Gasket
£0.71 (exc VAT) each
£0.85 (inc VAT)
-
+
016PN16032 1 1/4" NB PN16 IBC Flange Gasket
£1.01 (exc VAT) each
£1.21 (inc VAT)
-
+
016PN16040 1 1/2" NB PN16 IBC Flange Gasket
£1.22 (exc VAT) each
£1.46 (inc VAT)
-
+
016PN16050 2" NB PN16 IBC Flange Gasket
£1.27 (exc VAT) each
£1.52 (inc VAT)
-
+
016PN16065 2 1/2" NB PN16 IBC Flange Gasket
£1.92 (exc VAT) each
£2.30 (inc VAT)
-
+
016PN16080 3" NB PN16 IBC Flange Gasket
£2.17 (exc VAT) each
£2.60 (inc VAT)
-
+
016PN16100 4" NB PN16 IBC Flange Gasket
£2.93 (exc VAT) each
£3.52 (inc VAT)
-
+
016PN16125 5" NB PN16 IBC Flange Gasket
£3.65 (exc VAT) each
£4.38 (inc VAT)
-
+
016PN16150 6" NB PN16 IBC Flange Gasket
£4.89 (exc VAT) each
£5.87 (inc VAT)
-
+
016PN16200 8" NB PN16 IBC Flange Gasket
£8.36 (exc VAT) each
£10.03 (inc VAT)
-
+
016PN16250 10" NB PN16 IBC Flange Gasket
£11.70 (exc VAT) each
£14.04 (inc VAT)
-
+
016PN16300 12" NB PN16 IBC Flange Gasket
£16.94 (exc VAT) each
£20.33 (inc VAT)
-
+
