TSP® 90° Galvanised FxF Short Bend Malleable Pipe Fitting

TSP® 90° Galvanised FxF Short Bend Malleable Pipe Fitting

Size
Please select from the options above.
Quantity: - +

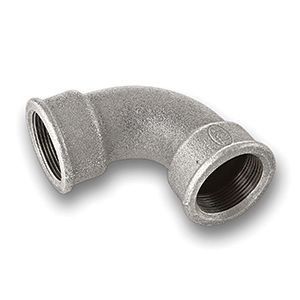

A FM Approved TSP® malleable iron 90° female BSPP threaded short bend pipe fitting in galvanised finish to BS EN 10242.


Size Range Reinforcement
1/2"" (15mm) to 4"" (100mm) Beaded
Standard Connection Type
ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive (PED) Female BSP taper threads/Male BSP parallel threads - EN10226-1/ISO 7-1, ISO 228-1
Material Finish
GJMB-350-10 Blackheart Malleable Cast Iron to EN1562 Galvanised - hot dip zinc coated cast iron (minimum 70µm per 500gr/m2
Maximum Operating Pressure Maximum Operating Temperature
25 bar (PN25) up to 120°C 300°C at 20 bar (PN20)
Operating Temperature Range Accreditation
-20°C to 300°C FM Approved
View/download our TSP® EN10242 Malleable Iron Pipe Fitting Catalogue
