TSP® 90° Galvanised MxF Short Bend Malleable Pipe Fitting

TSP® 90° Galvanised MxF Short Bend Malleable Pipe Fitting

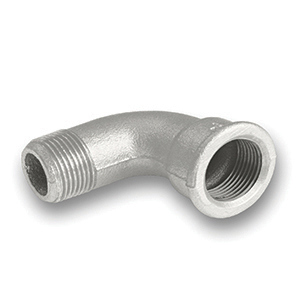

TSP® EN10242 Galvanised 90° MxF Short Bend

A FM Approved TSP® malleable iron 90° male BSPT taper thread to female BSPP parallel thread short bend pipe fitting in galvanised finish to BS EN 10242.

Size Range

1/2" (15mm) to 4" (100mm)

Reinforcement

Male BSPT taper threads/female BSPP parallel threads - EN10266-1/ISO 7-1, ISO 228-1

Standard

ISO 49, BS EN 10242:1995 Design Symbol A & Pressure Equipment Directive

Connection Type

Male BSPT taper threads/female BSPP parallel threads - EN10266-1/ISO 7-1, ISO 228-1

Material

GJMB-350-10 Blackheart Malleable Cast Iron to EN1562

Finish

HDG galvanised cast iron (minimum 70μm per 500gr/m²)

Maximum Operating Pressure

25 bar (PN25) up to 120ºC

Maximum Operating Temperature

300ºC at 20 bar (PN20)

Operating Temperature Range

-20ºC to 300ºC

Accreditation

FM Approved

TSP® malleable iron pipe fittings are primarily designed to be used with EN10255 steel tube and pipe.

TSP® Malleable Iron Pipe Fitting Catalogue download

Code Description Size Finish Price Quantity
03801AG015 1/2" Galvanised 90º Bend 1/2" Galvanised
£1.99 (exc VAT) each
£2.39 (inc VAT)
-
+
03801AG020 3/4" Galvanised 90º Bend 3/4" Galvanised
£2.70 (exc VAT) each
£3.24 (inc VAT)
-
+
03801AG025 1" Galvanised 90º Bend 1" Galvanised
£4.34 (exc VAT) each
£5.21 (inc VAT)
-
+
03801AG032 1 1/4" Galvanised 90º Bend 1 1/4" Galvanised
£5.66 (exc VAT) each
£6.79 (inc VAT)
-
+
03801AG040 1 1/2" Galvanised 90º Bend 1 1/2" Galvanised
£9.55 (exc VAT) each
£11.46 (inc VAT)
-
+
03801AG050 2" Galvanised 90º Bend 2" Galvanised
£16.06 (exc VAT) each
£19.27 (inc VAT)
-
+
04001AG065 2 1/2" Galvanised 90º Bend 2 1/2" Galvanised
£42.57 (exc VAT) each
£51.08 (inc VAT)
-
+
04001AG080 3" Galvanised 90º Bend 3" Galvanised
£51.54 (exc VAT) each
£61.85 (inc VAT)
-
+
04001AG100 4" Galvanised 90º Bend 4" Galvanised
£292.91 (exc VAT) each
£351.49 (inc VAT)
-
+
